The Chalet Loft cabin - CT-Series
Auckland, Bay of Plenty, Canterbury, Gisborne, Hawke's Bay, Manawatu, Marlborough, Nelson Bays, Northland, Southland, Taranaki, Timaru - Oamaru, Waikato, Wairarapa, Wellington, West Coast, Whanganui

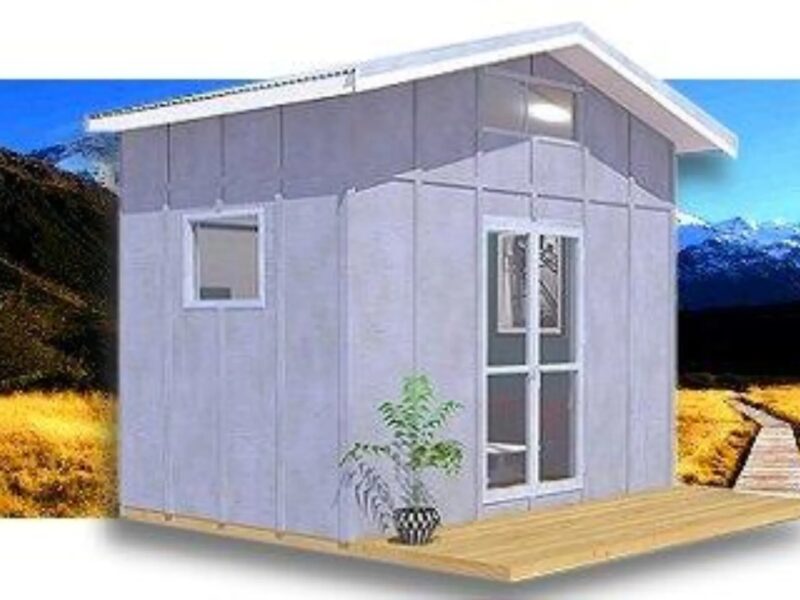

The Chalet, with its loft nib wall, is a modern take on the traditional gable-style cabin.

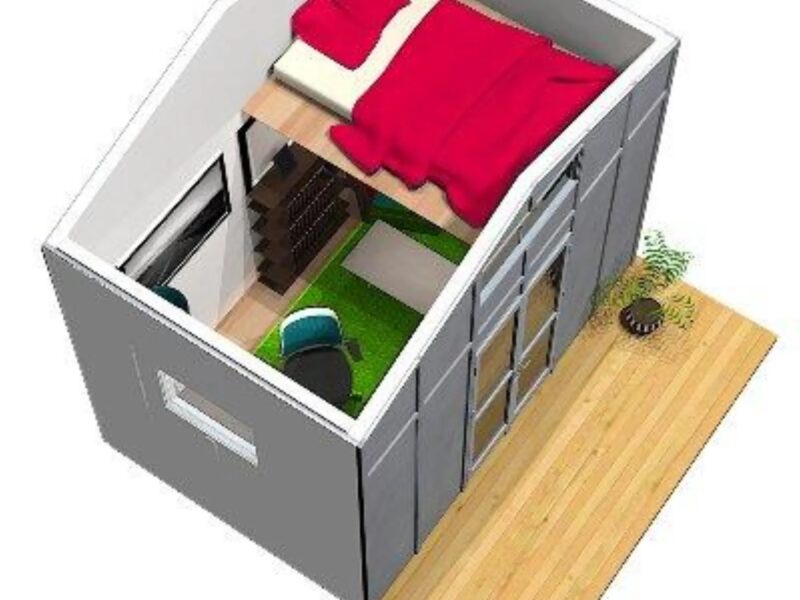

The increased loft height is ideal for sleeping or storage and makes the Chalet the ideal student sleepout or garden office.

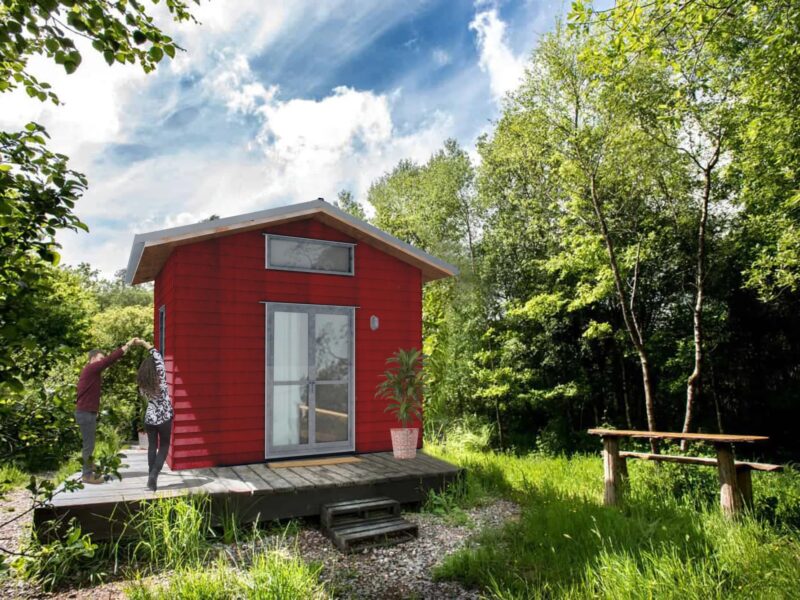

Available with Zinclame, Coloursteel, Shadowclad Ply, Hardiplank weatherboard or Plywood and batten.
If your cabin is under 10m² and with a maximum roof height under 3.5m, it is a suitable backyard addition, it will generally not require Building consent, which makes them the ideal option for an owner build.
Models available:

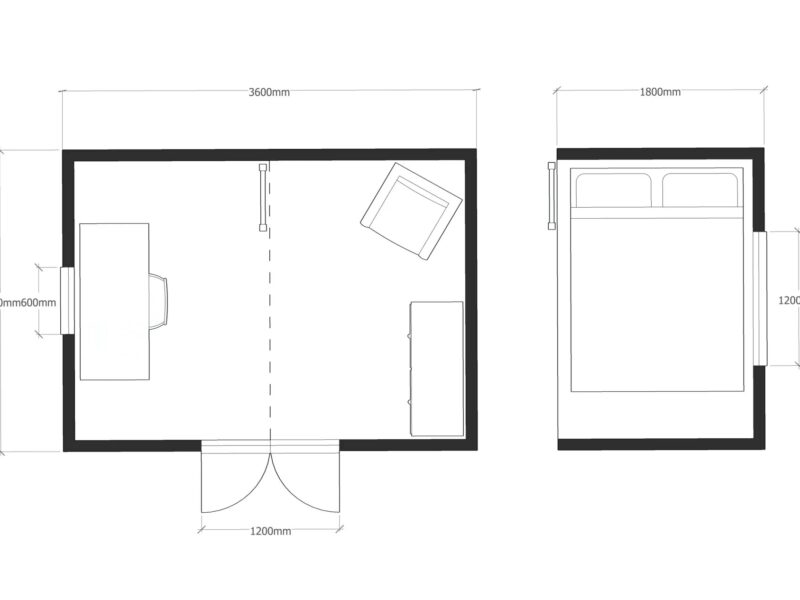

- CT3627: 3.6m x 2.7m – 9.72m² (Loft – 2.7 x 1.8m)

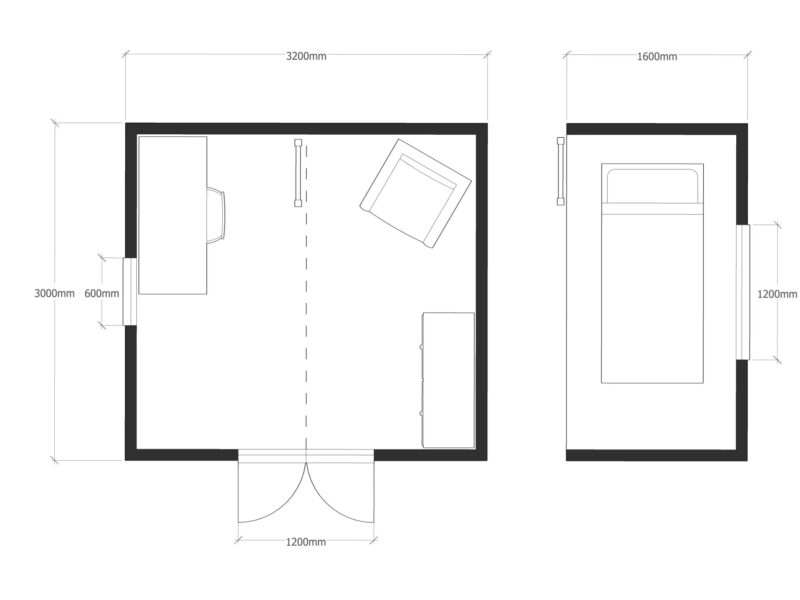

- CT3230: 3.2m x 3.0m – 9.60m² (Loft – 3.0 x 1.6m)
Floor plans and images are a representation only.
Other Sample Cabin Plans under 10m²
Other Sample Cabin Plans over 10m²
Available as Builder’s Kitset.
| CHALET CABIN MODEL SPECS | ||
| Frame: | 90mm H1.2 Radiata | |
| Floor: | 20mm P/Board, H3.2 joists | |
| Cladding: | Plywood and Batten | |
| Roof: | Colour Steel | |
| Doors: | Aluminium French Door, 2.0m high x 1.2m wide | |
| Windows: | Aluminium Awning, 2 @ 0.4m high x 1.2m wide, 1 @ 0.8m high x 0.6m wide |
|
| Loft Floor: | 20mm P/board | |
| KITSET LOCKUP SHELL | ||
| EXTRAS
LINING KIT – From $2120+gst Includes: Wall/Ceiling Insulation – Pinkbatts, Plasterboard linings to the cabin, Pine trim, Fixings and Fastenings. FOUNDATION KIT – From $1350+gst (Layout dependent) Includes: Piles, Bearers and Fixings. |
||
| OPTIONS | ||
| Doors: | Change to a slider or different sizes | |
| Windows: | Extra windows, different sizes | |
| Floor: | Treated plywood, underfloor insulation | |
| Cladding: | Coloursteel, Hardiplank W/board, Shadowclad | |
| Roof: | Upgrade to Coloursteel | |
| Deck: | Sizes as required | |
| NOTE: Prices may vary due to location requirements | ||
Kits can be supplied in two ways:
MS Merchant Supply
Ideal for competent builders. Includes CBNZ’s unique Plan Pack with full manufacturing drawings and assembly instructions.
It also includes organising the best material quotations for all materials delivered to the site.
BK Builders Supply
Ideal for builders or experienced DIYers. Includes precut and pre-nailed floor and cabin framing, manufacturing drawings and assembly instructions for roofing, cladding, and joinery.
All materials including linings, delivered to site.
