The MONO

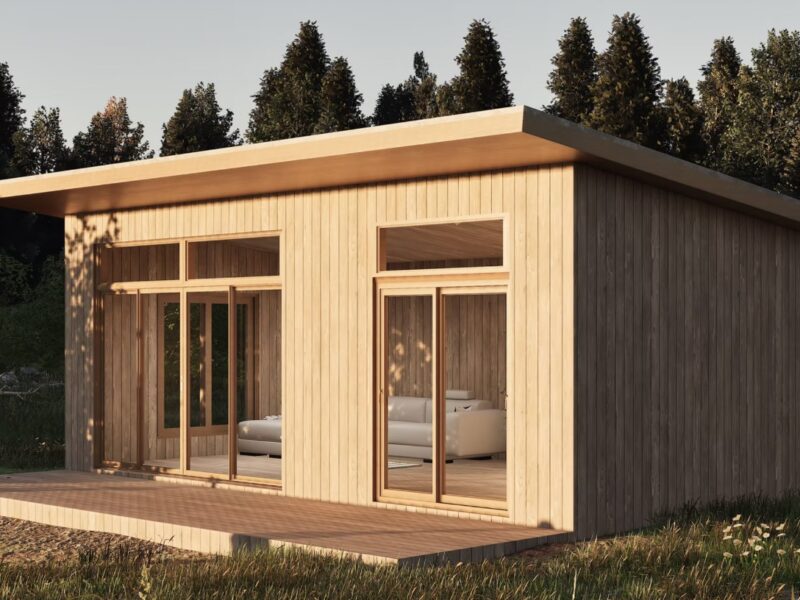

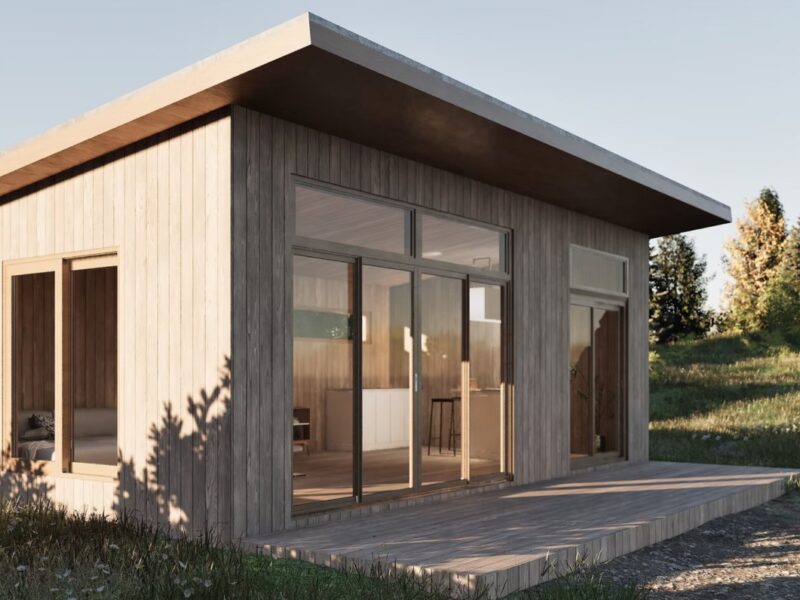

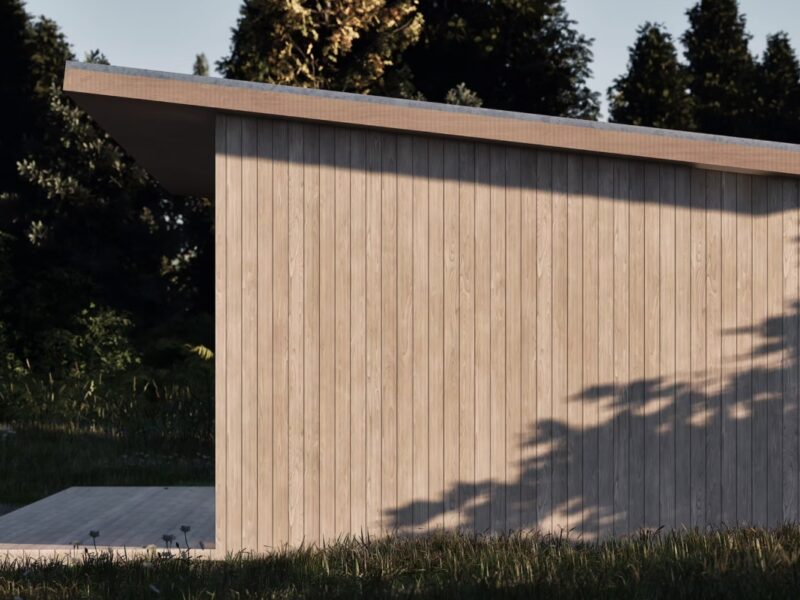

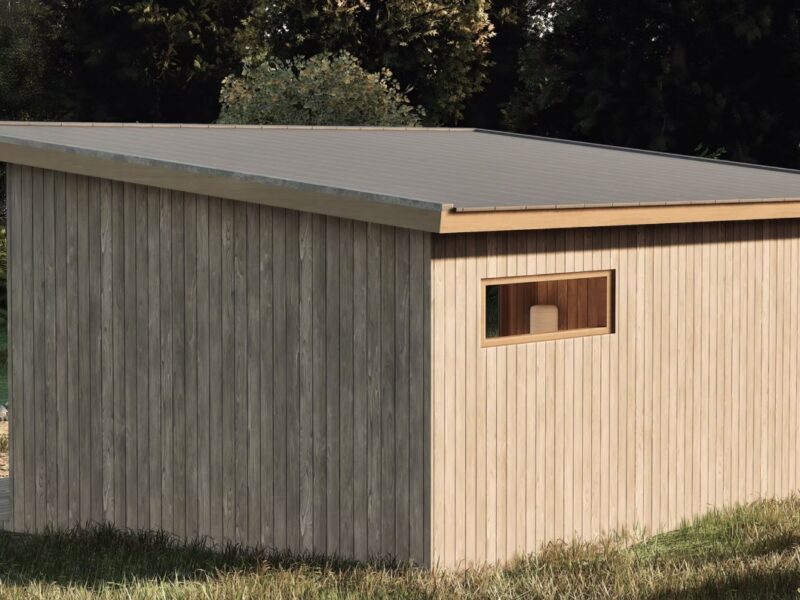

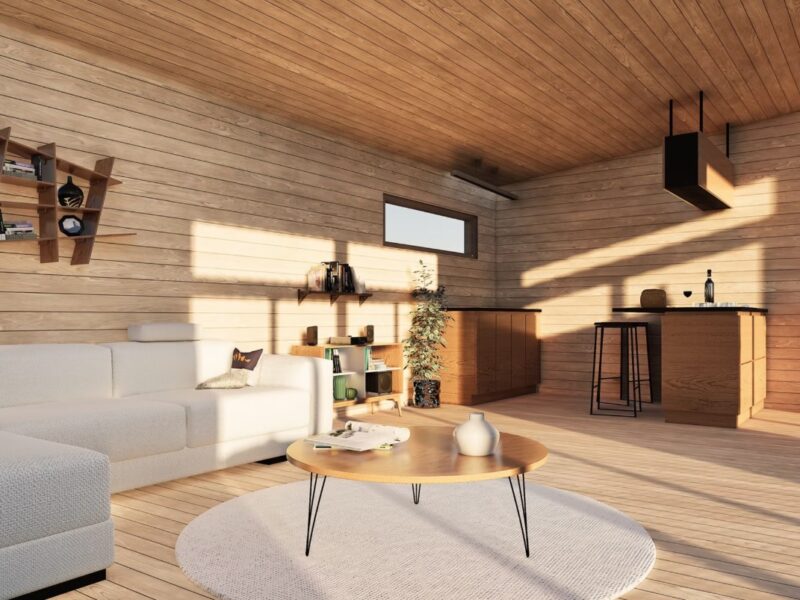

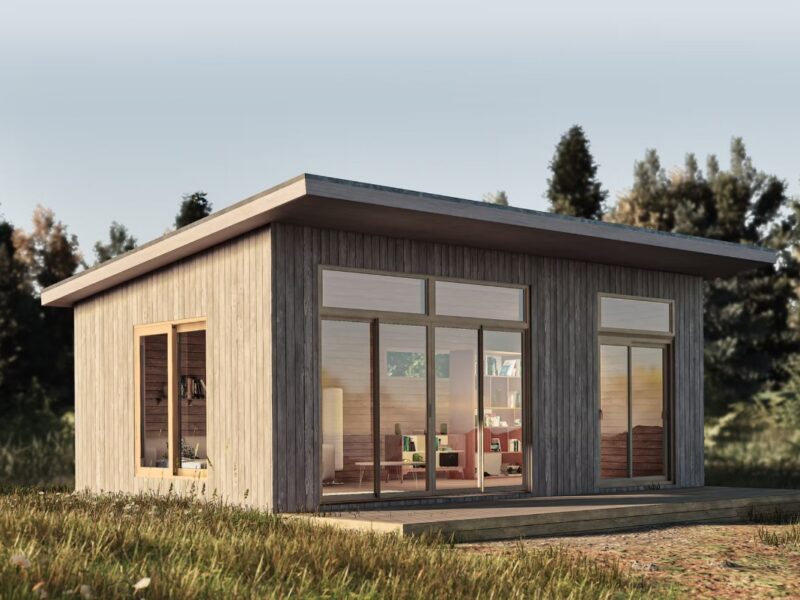

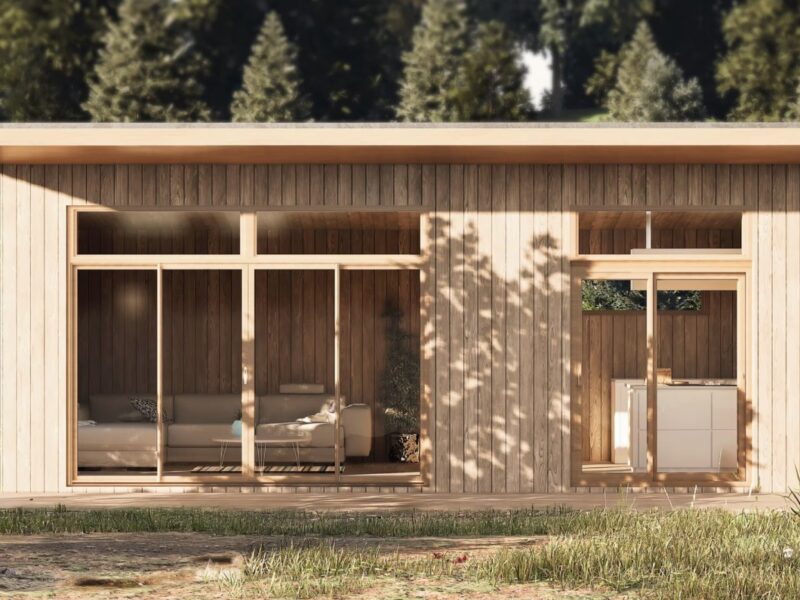

With its classic Mono pitch roof design with an overhang at the front, the MONO lends itself to sites requiring a lower roofline. The MONO features high horizontal windows above the front doors giving it a light and spacious feel.
-
Available in two sizes – MONO 20 (5m x 4m) and MONO 30 (7.5m x 4m).
-
Available in two different wall constructions – MONO BASIC (solid horizontal interlocking timber) and MONO PREMIUM (same as Basic but with external framing, insulation and cladding).
-
Our PREMIUM kits include solid kiln dried Nordic Spruce, natural NZ wool insulation, double glazed joinery and metal roofs.
MONO Basic 20 from $30,000
MONO Basic 30 from $40,000
MONO Premium 20 from $45,000
MONO Premium 30 from $57,000
| MONO Basic | MONO Premium | |
|---|---|---|
| Exterior look | Horizontal solid timber | Vertical timber cladding (or choose your own) |
| Kit price* | MONO Basic 30,000, MONO Basic 30 $40,000 | MONO Premium 20 $45,000, MONO Premium 30 $57,000 |
| Assembly | DIY | Builder |
| Construction | 44mm thick solid tongue and groove timber | 44mm thick solid tongue and groove timber + framing + 90mm insulation** + wrap + cavity + cladding |
| Wall Insulation** | R 2.4 (to NZ code) | R4.8 (double NZ code) |
| Double glazing | Yes double glazing in wooden frames | Yes Argon filled double glazing in premium UPVC units with quality German tilt and turn hardware |
| Estimated construction time | 1–2 weeks for two people | 4–5 weeks for two people |
* The Nordic Spaces kit price includes joists, 28mm thick tongue and groove flooring, double glazed windows and doors, rafters and 18mm thick tongue and groove ceiling boards and materials for your chosen wall construction (44mm logs or 44m logs + framing and cladding). Installation instructions are also provided with the kits and we are available for clarification if required.
